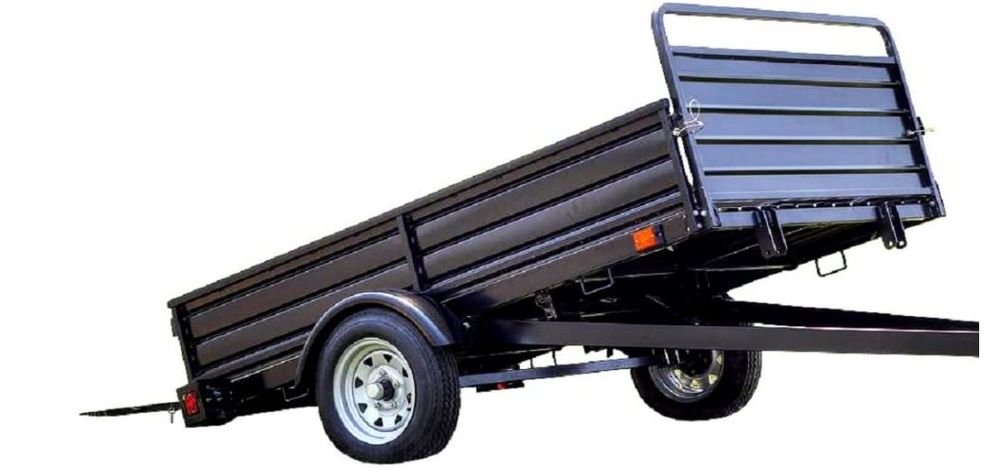

DK2 Utility Trailer Kit 4.5'x7.5' Black Powder Coat

The DK2 MMT5X7 single axle multi-utility trailer is one of the most versatile trailers on the market. Sitting on a solid square tube cambered axle with 12 in. radial tires, and a load capacity of 1,639lb. When the front and back load-bearing gates are down, the trailer bed extends to nearly 11.58 ft. Another great feature is the tilt/dump capability that makes it easy to load or unload heavy items. Fabricated from 100% steel, all of the components are reinforced, adjustable, removable and / or interchangeable.

Features

• Fully welded heavy-duty powder-coated tubular steel frame, Removable 100% steel corrugated floor and solid side and front panels/rails
• Load capacity: 1,500 lb., Floor height: 20 in., Box dimension 52" x 88"
• Solid square tube cambered axle, V shape drawbar tongue for added strength & support, Axle Length: 68.11"; Hub Size: 1"-Bearing #30205; Bearing Seal #305010; 4 Bearings & 2 Seals; GVWR: 2090lbs
• Entire Trailer Galvanized, Radial tires: 5.3" x 12" (6 ply nylon cord), Bolt pattern: 5 x 4.5 in.
• Quick release lock-pin, Load-bearing front and back drop gate, 2 position dump bed, Hitch height: 16 in.
• Trailer fully pre-wired with Plug and Play 4 in., flat connectors to reduce time of assembly, Removable two gates can be extended
• Extended dimensions (L x W): 11.58 ft. x 4.4 ft, Bed dimensions (L x W): 7.1 ft. x 4.4 ft., Overall length: 7 ft.(with front and back gates up)
• Includes: 2 inch coupler with safety chains, LED Lights, 3 Leaf spring, Assembly required, Weight: 451lbs
• Includes all necessary paperwork for registering with local DMV, 5.3" x 12' DOT tires (2)

Specifications

• Condition: New
• Width: 65
• Depth: 177
• Height: 36
• Weight (lbs): 451
• Material: 100% Solid Steel Construction
• Color: Black
• Assembly Required: Yes
• Country of Origin: China
• Warranty: 1 Year
• MFG Part #: MMT5X7
