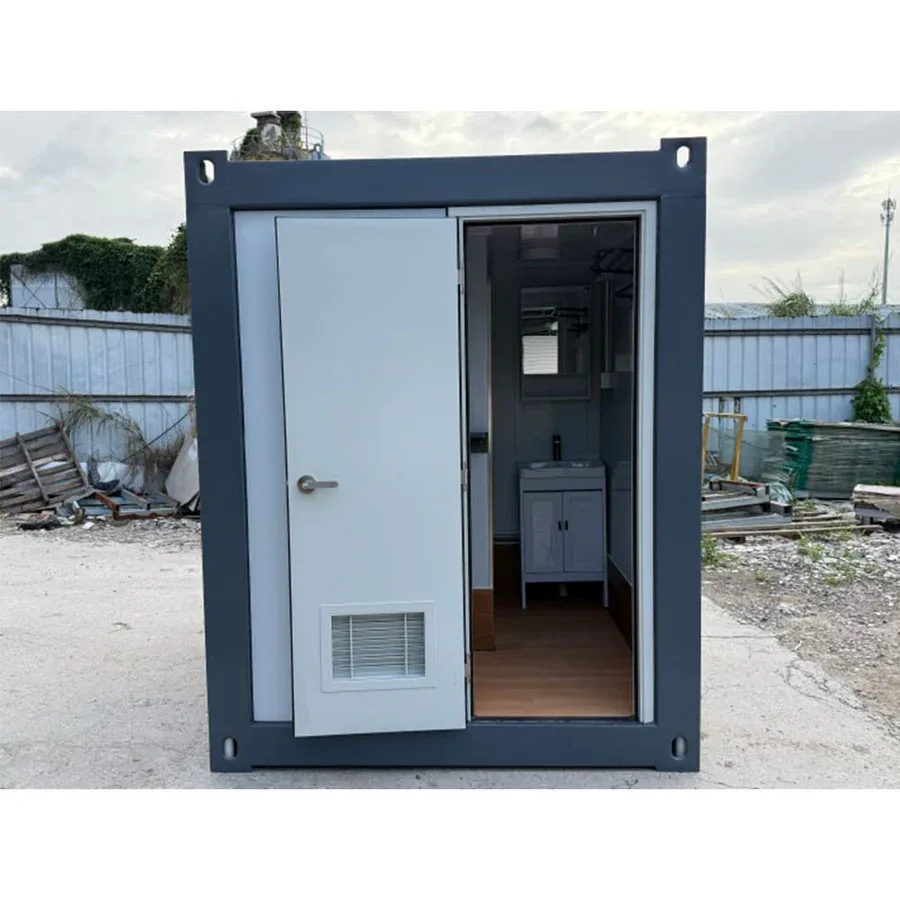

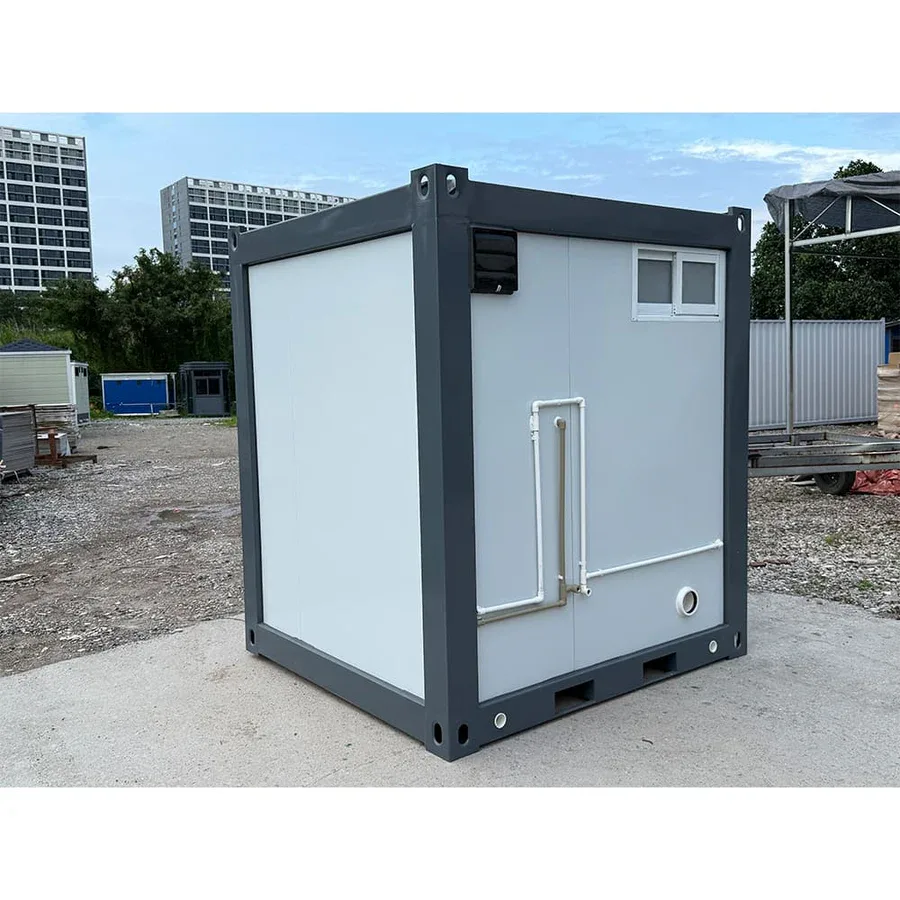

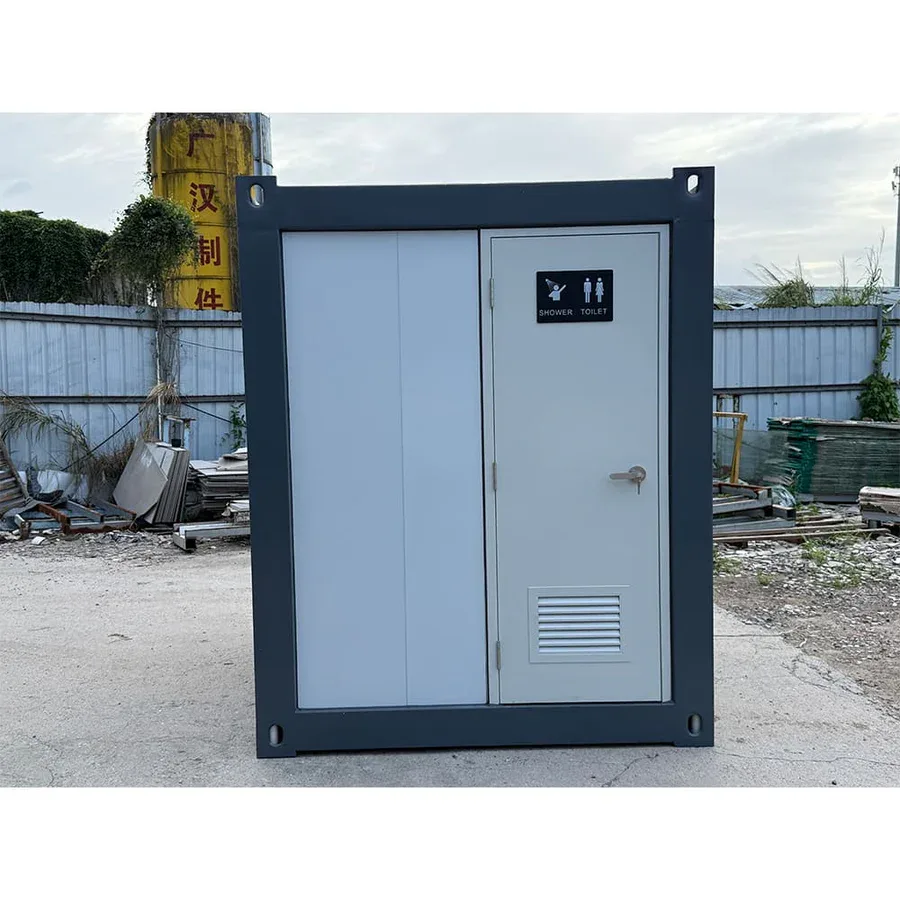

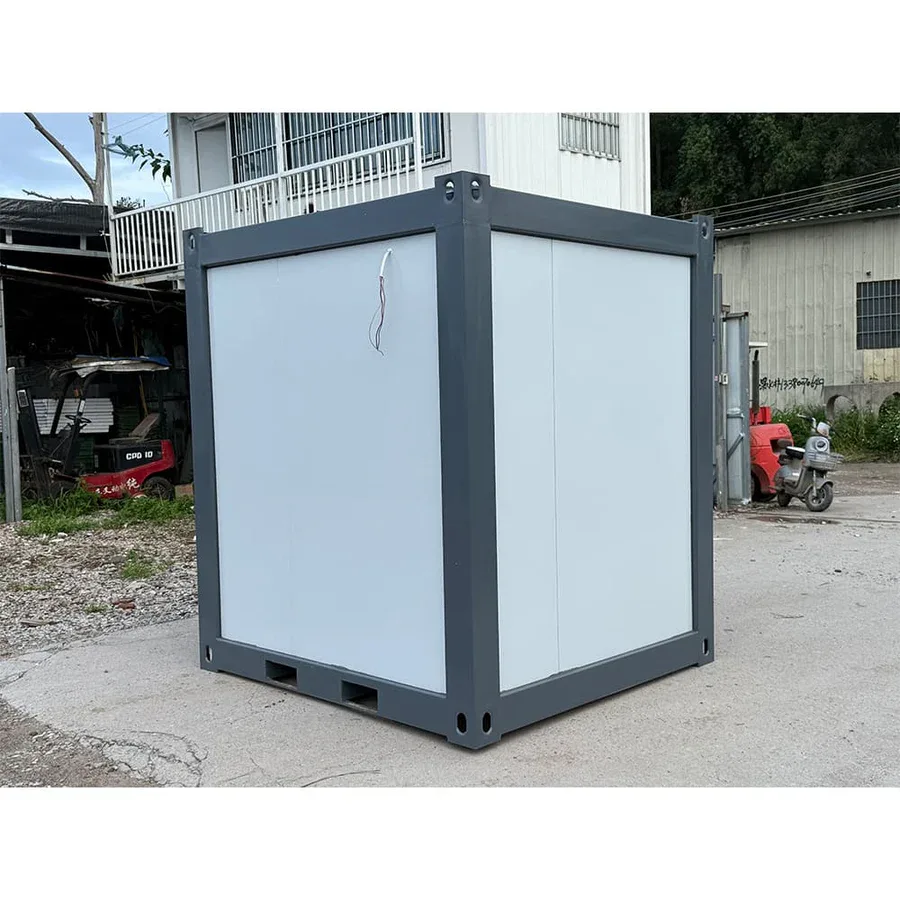

Portable Restroom with Shower 6.6×6.1ft Unit

Prefabricated Portable Restroom Cabin featuring a welded galvanized steel frame, insulated wall and roof panels, integrated restroom fixtures, shower area, electrical system, and ventilation. Suitable for construction sites, parks, recreational areas, temporary facilities, industrial locations, and remote worksites.

This unit is assembled. Forklift is required to unload the unit upon arrival

Specification

Restroom Cabin Specifications

Exterior Dimensions: 6.1 ft × 6.6 ft × 7.5 ft (W × L × H)

Fire Rating

• Fire Resistance Performance: Class B

Structural Frame

• Floor Main Beams: 6.3 in × 6.3 in × 0.09 in galvanized steel formed sections
• Floor Secondary Beams: 0.8 in × 1.6 in × 0.06 in galvanized steel
• Main Columns: 6.3 in × 6.3 in × 0.09 in galvanized steel formed sections
• Roof Main Beams: 6.3 in × 6.3 in × 0.09 in galvanized steel formed sections
• Frame Assembly: Welded steel construction
• Surface Finish: Exterior-grade painted coating

Wall System

• 2-inch (50 mm) insulated EPS sandwich panels
• Overall panel width: 45.3 in
• Exterior steel skins: 0.011 in pre-painted steel
• Color: White/Gray
• Flat panel design on both sides
• EPS insulation density: 0.75 lb/ft³
• Fire Rating: Class B

Roof System

• 2-inch insulated EPS composite roof panels
• Panel width: 45.3 in
• Exterior steel skins: 0.011 in pre-painted steel
• White/Gray finish
• EPS insulation density: 0.75 lb/ft³
• Fire Rating: Class B

Insulation

• 2-inch flame-retardant EPS insulation
• Density: 0.75 lb/ft³
• Fire Rating: Class B

Interior Ceiling

• Bamboo Fiber Decorative Ceiling Panels

Flooring System

• 0.71 in (18 mm) cement fiber board subfloor
• 0.08 in (2 mm) wood-grain PVC flooring finish

Door

• Steel Entry Door

Window

• Aluminum-framed window
• 0.20 in (5 mm) tempered frosted glass

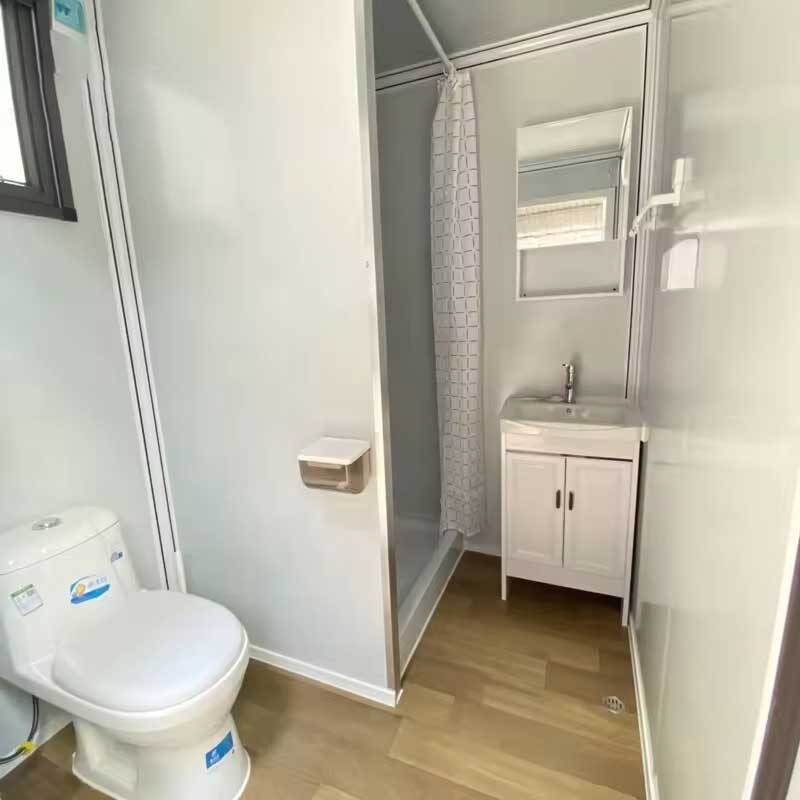

Included Plumbing Fixtures

• Toilet (1)
• Toilet Spray Gun / Bidet Sprayer (1)

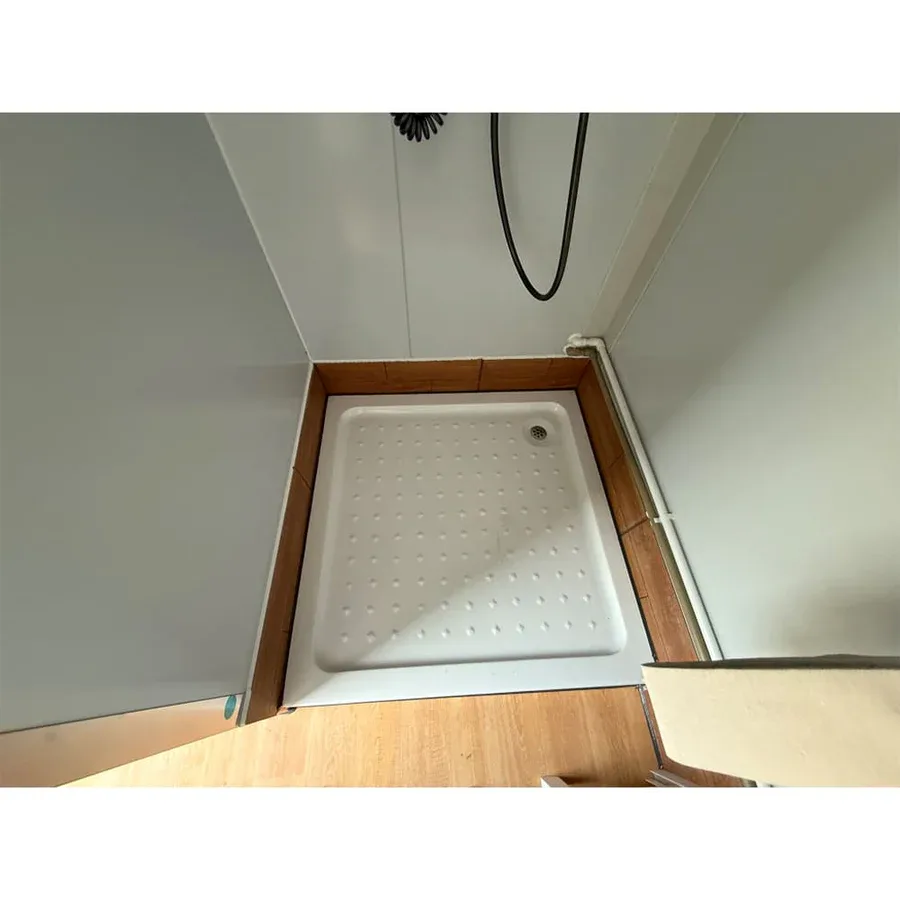

• Acrylic Shower Base (1)
• Shower Curtain (1)
• Shower Fixture Set (1)

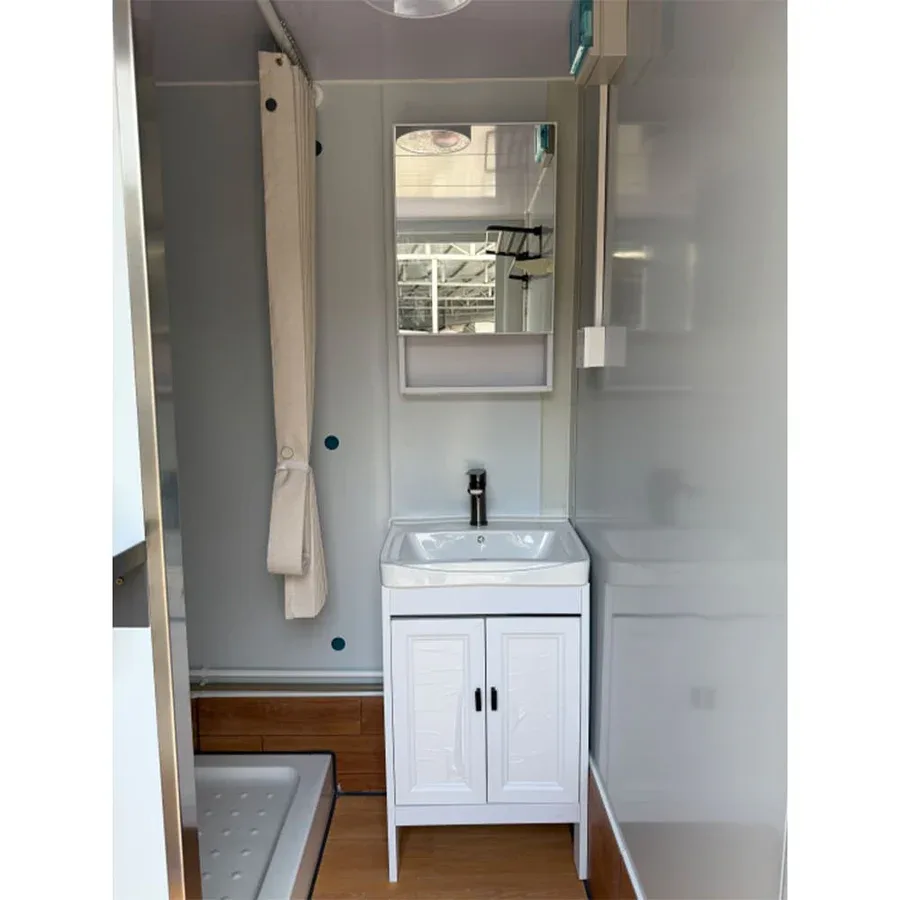

• Deluxe Space-Aluminum Sink with Mirror Cabinet (1)
• Floor Drains (2)

Included Electrical Components

• 110V Ceiling Lights (2)
• Exhaust Fan (1)
• Light Switches (3)
• U.S.-Style Electrical Outlets (2)
• 63A Residual Current Circuit Breaker (RCCB) (1)

Electrical Service

• 110V Interior Fixtures
• Pre-installed electrical distribution panel with RCCB protection
